Mini Handkerchief Pocket Tissue Paper Folding Making Manufacturing Machine Production Line Low Price

Product Categories

Dalian Jori Co., Ltd.

Contact Now

Mini Handkerchief Pocket Tissue Paper Folding Making Manufacturing Machine Production Line Low Price

Name: Mini Handkerchief Pocket Tissue Paper Folding Making Manufacturing Machine Production Line Low Price
Brand: JORI PAPER
Price: 68 USD

Quality Mini Handkerchief Pocket Tissue Paper Folding Making Manufacturing Machine Production Line Low Price wholesale

Applicable Industries : Manufacturing Plant, Machinery Repair Shops, Other

Showroom Location : None

Condition : New

Product Type : Pocket Tissue Handkerchief Wallet Tissue Machine

Processing Type : PLC

Place of Origin : Fujian, China

Brand Name : JORI PAPER

Voltage : 220V or 380V

Power : 380V 50Hz

Dimension(L*W*H) : 10000*3000*2000

Weight : 6000 kg

Warranty : 1 Year

Production Capacity : 0-230m/min

Machinery Test Report : Provided

Video outgoing-inspection : Provided

Marketing Type : New Product 2019

Warranty of core components : 1 Year

Core Components : Engine, Motor

Product name : Hot Sale Handkerchief Paper Production Line Paper Folding Machine

After-sales Service Provided : Engineers available to service machinery overseas

Jumbo Roll Width : 180-210mm

Jumbo Roll Ddiameter : 1500mm

Jumbo Roll Inner Ddiameter : 76.2mm/3 inches(Other sizes can be ordered)

Finished Product Size : 200/205/210mm

Finished Product Fold SIze : (65-115)x(50-53)

Speed : 70-75 bags/min

Embossing : Steel to Wool, Steel to Rubber

Separating Piece : 8/9/10

Packaging Details : Wooden Cases, Seaworthy Package.

Port : xiamen port,China

Supply Ability : 40 Unit/Units per Month

Price : $68,000.00/Units 1-9 Units

Contact Now

Hot Sale Handkerchief Paper Production Line Paper Folding Machine

Mini Handkerchief Pocket Tissue Paper Folding Making Manufacturing Machine Production Line Low Price

Automatic handkerchief production line consists of three machines, handkerchief folding machine with seperator, automatic single bag packing machine and automatic bundle packing machine, it can process the jumbo roll into beautiful finished products.

Handkerchief Folding Machine With Counting Separator
Production speed	500-600 pcs/min
Layers of the paper	1-2 layers 15 - 21 g/ m², 1 layer paper need ≥19g
Handkerchief open size	210*210 mm
Handkerchief folded size	10052 mm/7252 mm
Folding type	1/6 fold
One set Embossing	steel to paper
Color printing device	1-2 colors, option
Main machine drive	synchronous toothed belt drive, a flat belt conveying
Inner diameter of jumbo roll core	Φ76.2mm
Main motor power	4kw

Automatic handkerchief folding machine, speed is 500-600 pcs/min, normally can make two folding size 100*52 mm and 72*52 mm, opend size is same 210*210 mm. Machine have color printing unit for option. And machine equipped with automatic counting seperator, can calculate the number and transfer into conveyor belt for single bag packing. In this way labour cost greatly decreased.

Automatic Handkerchief Single Bag Packing Machine
Packing speed	25-70bags/min
Packing Size	L(70-110)W(65-100)H(20-55) mm L(105-130)W(80-115)H(20-55) mm L(125-140)W(90-135)H(20-55) mm L(100-200)W(50-115)H(20-55) mm
Power	5kw
Voltage	380 V 50 Hz
Dimension	284026501720 mm

Automatic handkerchief single bag packing machine, can pack handkerchief into one small pack, with tear-tape, packing speed 25- 70 bags/min, packing size is changable, but one size one mould, so you need to imform us your packing size when you order the machine.

Automatic Handkerchief Multiple Bags Packing Machine
Speed	8-22 Bag/min
Packing size	(150-330)(70-200)(20-100)mm
Power	4.0 KW
Air compresor	0.5-0.6 Mpa
Voltage	380 V 50 Hz
Packing material	CPP/ PE
Weight	About 1500 KG

Automatic handkerchief multiple bags packing machine, automatic connect with single bag packing machine, speed 8-22 bag/min, packing size is adjustable, it can pack both one layer and two layers, Finished products is flat and beautiful.

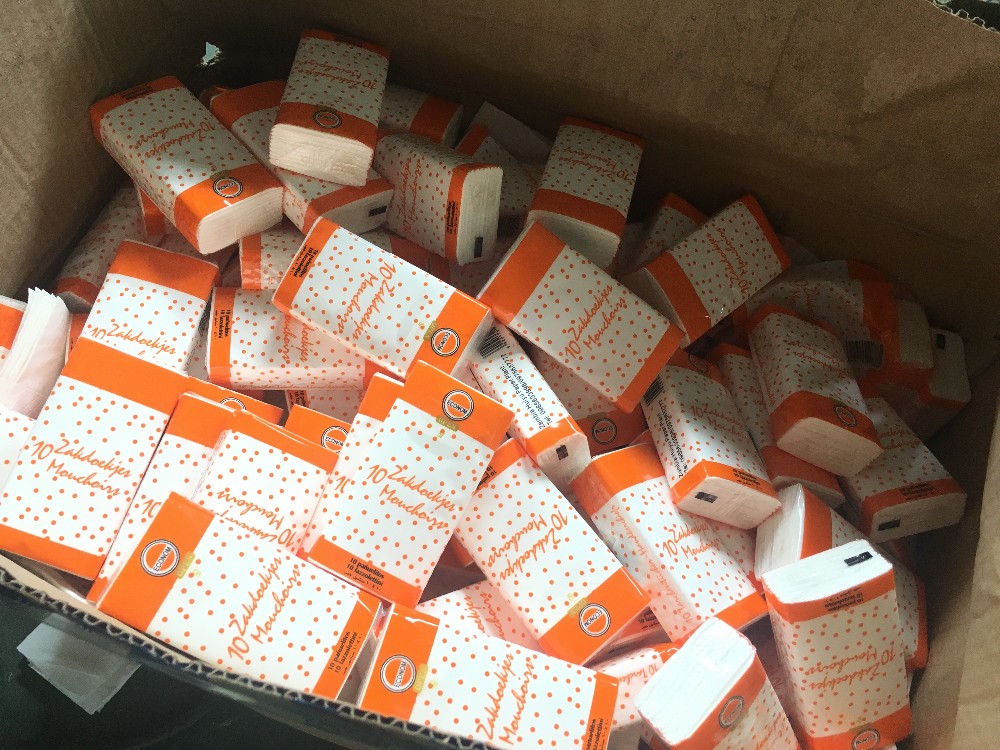

Finished Products:

Related Products

Packing & Delivery

Our Company

FAQ

1. How long is your Warranty?
A: All our products will have ONE year guarantee and we will continue to offer advice and spare parts after this period.
Within ONE year after receiving our machines, Under right operation and non-artificial reasons, If there are any damaged parts or accessories, We will replace them by air-mail or Express immediately FREE OF CHARGE.
After ONE year warranty, Spare parts and damaged parts will be charged at cost price. If there is something wrong with the machine, We are responsible to solve this problem soonest, and help customers to restore production as soon as possible.

2. How to Guarantee transaction security?
A: We could draft Trade Assurance order for buyers via Alibaba-Trade Assurance is a free service by Alibaba.com that’s designed to help create trust between buyers and suppliers. Trade Assurance helps buyers in the event of shipping and quality-related dispute.

3. Do your company accept Alibaba Trade Assurance?
A: yes, of course. （1） We will draft order according buyer requirements. （2）Negotiate terms with the supplier
and confirm order （3） Make payment to the bank account designated by Alibaba.com

4. What's the payment terms?
A: 30% initial payment when place your order, 70% balance payment before shipment.

5. About machine's Transportation & documents?
A: Pls advise us the nearest port of your city in order to check the latest sea freight for you at first. Fast and security
shipping company will be chose by our Delivery Department for customers (if we signed contract under CIF term). Even All risks Insurance will be covered during the whole transportation.
