Easy to Operate Automatic Toilet Paper Roll Band Saw Cutting Machine

Product Categories

Dalian Jori Co., Ltd.

Contact Now

Easy to Operate Automatic Toilet Paper Roll Band Saw Cutting Machine

Name: Easy to Operate Automatic Toilet Paper Roll Band Saw Cutting Machine
Brand: JORI
Price: 14 USD

Quality Easy to Operate Automatic Toilet Paper Roll Band Saw Cutting Machine wholesale

Applicable Industries : Manufacturing Plant

Showroom Location : None

Condition : New

Type : Paper Cutting Machine

Computerized : Yes

Place of Origin : Fujian, China

Brand Name : JORI

Voltage : 380V 50Hz

Dimension(L*W*H) : 4600*1700*2500mm

Weight : 2700 kg

Warranty : 1 Year, 1 Year

Production Capacity : 55cut/min

Key Selling Points : High Productivity

Max. workable width : 1200mm

Machinery Test Report : Not Available

Video outgoing-inspection : Provided

Marketing Type : Ordinary Product

Warranty of core components : 1 Year

Core Components : Pressure vessel, Motor, Bearing, Gear, Pump, Gearbox, Engine, PLC

PLC Brand : DELTA

Product name : Automatic Industrial Roll Band Saw Cutting Machine

After-sales Service Provided : Engineers available to service machinery overseas

Cutting Speed : 20~30 cut per minute

Cutting Channel : 1 lane

Cutting Tool : 5180*100*1 bandsaw blade

Raw Material Length : ≤3000mm

Cutting Deviation : ±2mm

Power : 15KW

Packaging Details : Wooden Cases, Seaworthy Package.
Automatic Toilet Tissue Paper Roll Band Saw Cutting Machines

Port : Xiamen port, China

Supply Ability : 40 Unit/Units per Month

Price : $14,500.00/Units 1-9 Units

Contact Now

Products Description

Automatic Toilet Paper Roll Band Saw Cutting Machine

Features:

1.The main motor adopt frequency converter independently driven;
2.Adopt adjustable mould, diameter adjustment range:100 ~ 300mm;
3.Adopts automatic sharpening system, the grinding wheel automatically adjusts according to the blade loss;
4.Sharpening system with an independent dust removal device to ensure that the work environment health;
5 . Band saw adopt hydraulic tensioning system to ensure that band saw tension;
6. Adopt broken knife automatic shut down alarm;
7.Feeding motor using high-precision servo system to ensure the quality of finished products;
8.The machine can automatically calculate the number of finished products according to the length of raw materials and finished products;
9.When input data is wrong, the device suspends the work and prompts the adjustment on the interface;
10. The machine is using knife cutting, reduce user costs;

Item	Data	Remark
Weight	2700kg
Cutting Speed	20~30 cut per minute
Cutting Channel	1 lane
Cutting Tool	51801001 bandsaw blade
Raw Material Length	≤3000mm	Can special design according to customer rewinding machine
Cutting Deviation	±2mm
Cutting Length	≤400mm
Cutting Diameter	100~300mm	Mould can adjustable
Power	15kw

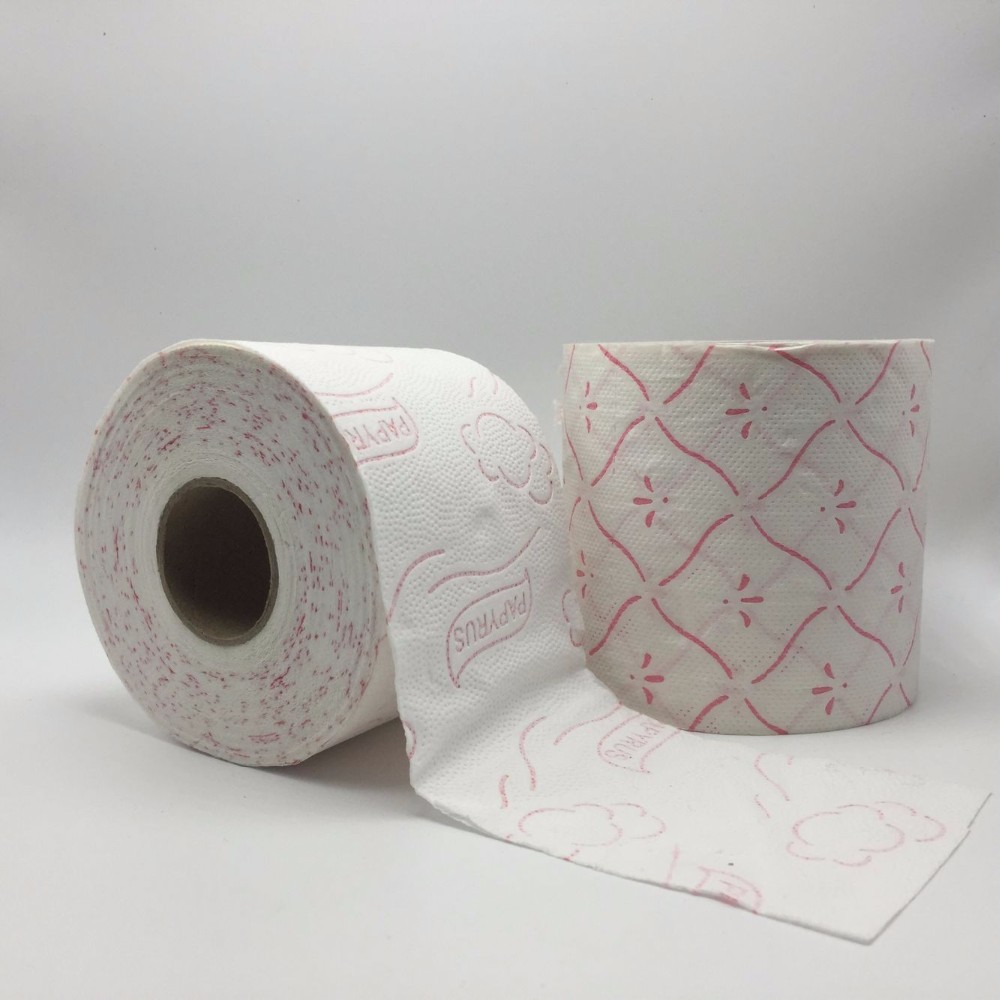

Finished Products(Can Make Four Types of Paper)

Optional Machines:

Automatic Shrinking Machine

1. Adopting packing way by wrapping, folding and sealing with compact structure, it makes the package look beautiful and the seal
tightened.
2. Controlled by stepless speed regulation, touch screen and PLC, the display on the human-machine interface makes maintenance
more simply.

High Speed Shrinking Machine

1. It saves much packing material by means of photocell checking, servo tracking, and auto-stop of film feeding without product.
2. High automation, high profession, high efficiency and less trouble.
3. With wide packing size range, various packing sizes can be quickly interchanged.

Related Products

Packing & Delivery

Our Company

FAQ

1. How long is your Warranty?
A: All our products will have ONE year guarantee and we will continue to offer advice and spare parts after this period.
Within ONE year after receiving our machines, Under right operation and non-artificial reasons, If there are any damaged parts or accessories, We will replace them by air-mail or Express immediately FREE OF CHARGE.
After ONE year warranty, Spare parts and damaged parts will be charged at cost price. If there is something wrong with the machine, We are responsible to solve this problem soonest, and help customers to restore production as soon as possible.

2. How to Guarantee transaction security?
A: We could draft Trade Assurance order for buyers via Alibaba-Trade Assurance is a free service by Alibaba.com that’s designed to help create trust between buyers and suppliers. Trade Assurance helps buyers in the event of shipping and quality-related dispute.

3. Do your company accept Alibaba Trade Assurance?
A: yes, of course. （1） We will draft order according buyer requirements. （2）Negotiate terms with the supplier
and confirm order （3） Make payment to the bank account designated by Alibaba.com

4. What's the payment terms?
A: 30% initial payment when place your order, 70% balance payment before shipment.

5. About machine's Transportation & documents?
A: Pls advise us the nearest port of your city in order to check the latest sea freight for you at first. Fast and security
shipping company will be chose by our Delivery Department for customers (if we signed contract under CIF term). Even All risks Insurance will be covered during the whole transportation.
